FRAME PREPARATIONS

    Strike Preparations – Jamb


    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit pocket trim kit

    Type Uses Timely Strike Plate Available Timely Filler Plate Spacing ID Series Arrow for Frame Preparations pages Templates
    S C A CK AK DE P P 1 3/8″ 1 3/4″

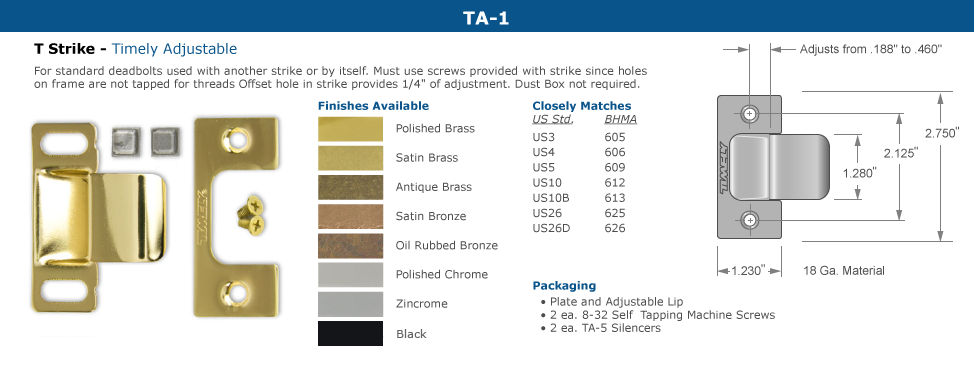

    1 3/8″ DOOR T-Strike (adjustable) Timely TA-1 • A Series Arrow for Frame Preparations pages YES YES • • • • • • S-50 •

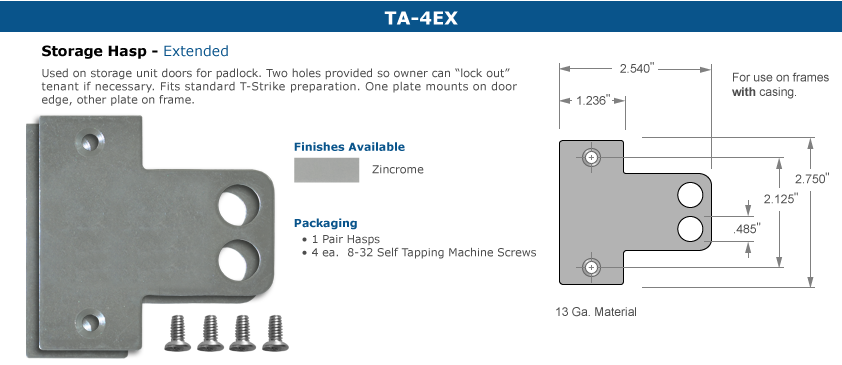

    Storage Hasp TA-4, TA-4EX • A YES YES • • • • • • S-50 •

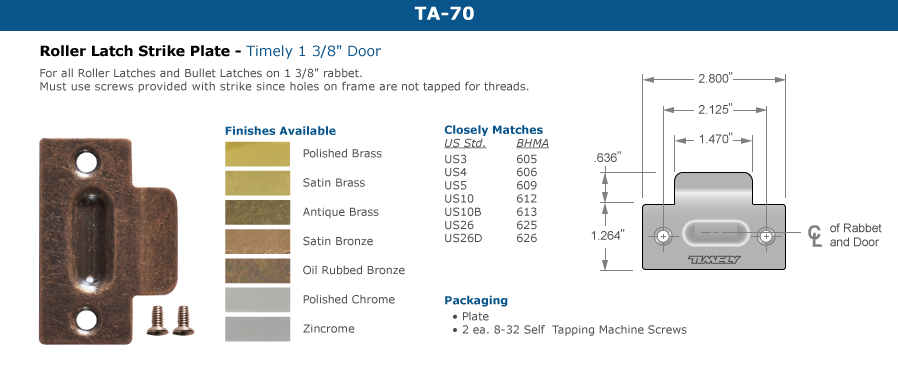

    Roller Latch TA-70 • A YES YES • • • • • • S-50 •

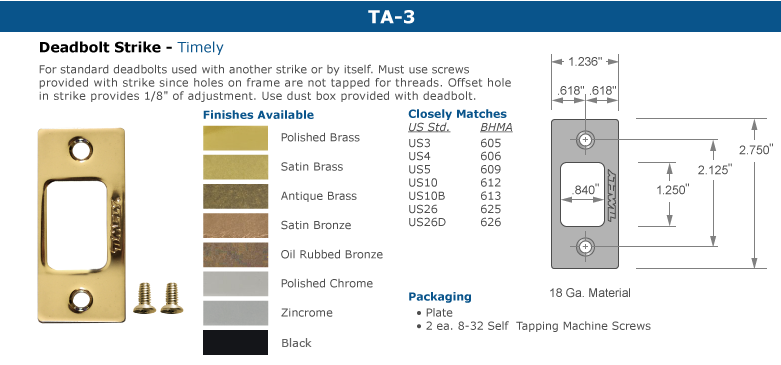

    Deadbolt Timely TA-3 TA-17 A YES YES • • • • • • S-53 •
    Pocket Latch 2 1/4″ • • A • • • • • • YES YES S-59 •
    Pocket Latch 3 1/2″ • • A • • • • • • YES YES S-60 •

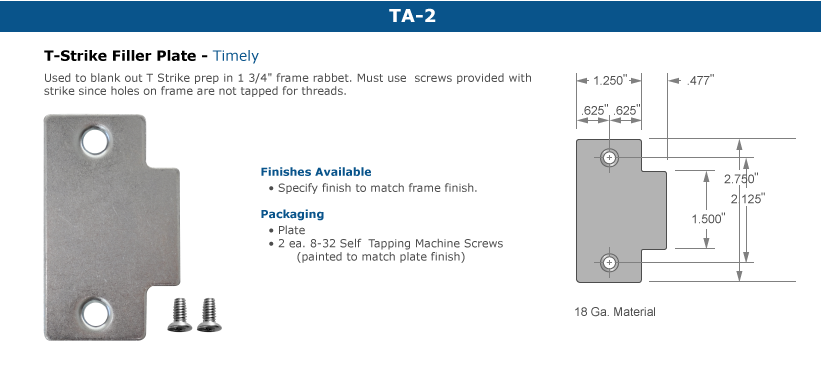

    1 3/4″ DOOR T-Strike (adjustable) Timely TA-1 TA-2 A YES YES YES YES YES • • • • S-51
    Storage Hasp TA-4, TA-4EX TA-2 A YES YES YES YES YES • • • • S-51

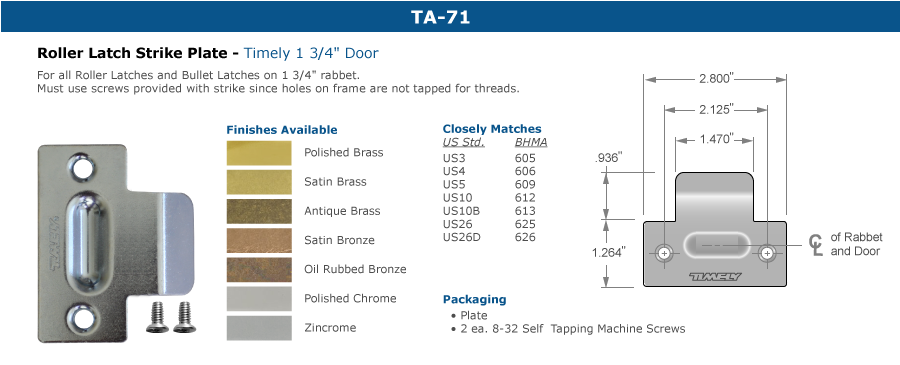

    Roller Latch TA-71 TA-2 A YES YES YES YES YES • • • • S-51
    Full Lip • • A YES YES YES YES YES • • • • S-52

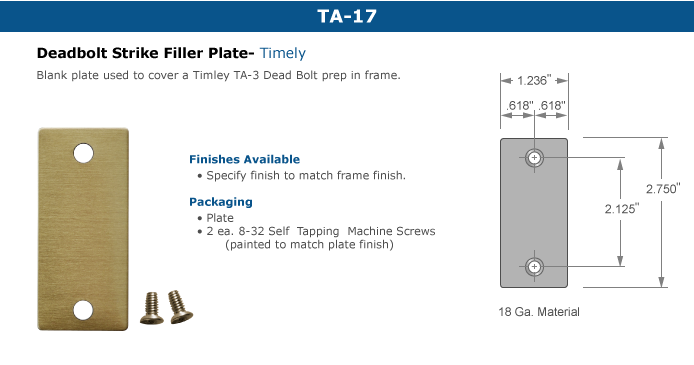

    Deadbolt Timely TA-3 TA-17 A YES YES YES YES YES • • • • S-54

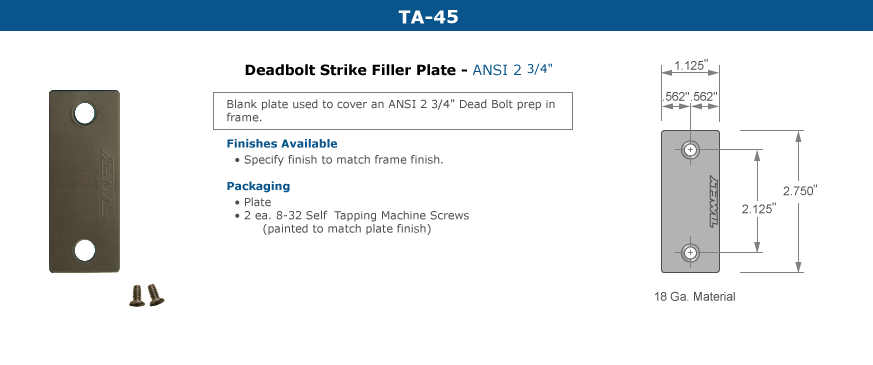

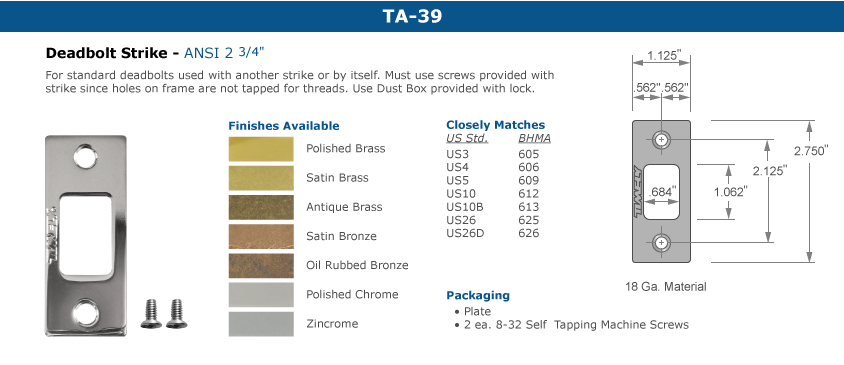

    Deadbolt ANSI 2 3/4″ TA-39 TA-45 A • • • YES YES • • • • S-55
    Deadbolt ANSI 3 1/2″ • • B YES YES YES YES YES • • • • S-56

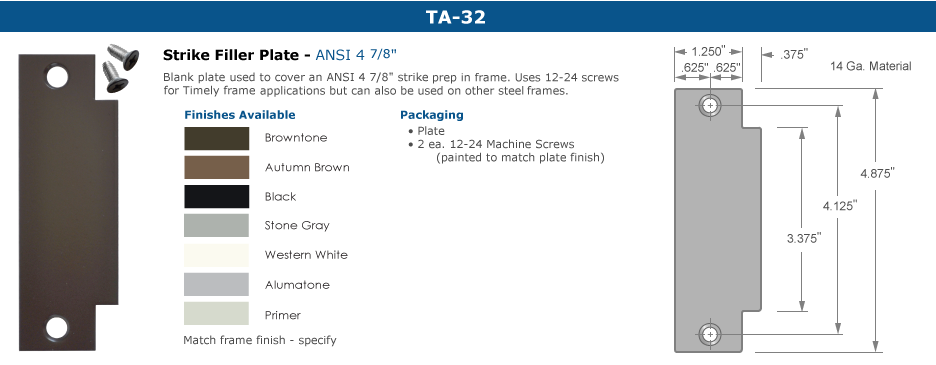

    ASA ANSI 4 7/8″ • TA-32 B YES YES YES YES YES • • • • S-57
    Auto Deadbolt ANSI 4 7/8″ • • B YES YES YES YES YES • • • • S-58
    Pocket Latch 2 1/4″ • • A • • • • • • YES YES • S-59
    Pocket Latch 2 3/4″ TA-3 TA-17 A • • • • • • YES • • S-54P
    Pocket Latch 3 1/2″ • • A • • • • • • YES YES • S-60
    EURO Auto Deadbolt Euro 4 7/8″ • • B • YES YES YES YES • • • • S-85
    Euro A Salto • • B • YES YES • • • • • • S-86
    Euro B Onity • • B • YES YES • • • • • • S-87
    Euro C • • B • YES YES • • • • • • S-88
    Euro D • • B • YES YES • • • • • • S-89

    Download File in Adobe Acrobat Format PDF DOWNLOAD StrikePreparations-Jamb.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.

    Strike Preparations – Jamb Electric


            classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit


    Electric Strike must have lip extender for TA28 casing.



    Manufacturer’s Product Number Available Lip Extender Timely Casing Filler Fire Rated Spacing ID

    TA-8, TA-30 TA-23, TA-28, TA-28M Series Arrow for Frame Preparations pages
    Comments
    S C A CK AK DE P
    ADAMS RITE 7140 -01 010-106099 010-206099 No B Series Arrow for Frame Preparations pages • YES YES YES • • •
    7240 -01 010-106099 010-206099 No B • YES YES YES • • •
    7440 LEK7400-50 010-106099 010-206099 No B • YES YES YES • • •

    DORMA ES72F (no TA-28)   010-115099 010-215099 Icon for Fire Rated Frame Preparations B • YES YES YES • • •
    ES84 (no TA-28)   010-109099 010-209099 No B • YES YES YES • • •
    ES86 (no TA-28)   010-111099 010-211099 No B • YES YES YES • • •
    NOTE: Casing Filler Information will be added when available

    HES 4500 (no TA-28)   010-113099 010-213099 No B • YES YES YES • • •
    RF4510 (no TA-28)   010-113099 010-213099 No B • YES YES YES • • •
    5000 5204-1/2 010-106099 010-206099 No B • YES YES YES • • •
    5200 5204-1/2 010-108099 010-208099 No B • YES YES YES • • •
    7000 7000-104 010-111099 010-211099 No B • YES YES YES • • • Use 791 Faceplate
    8000 801E 010-103099 010-203099 No B • YES YES YES • • •
    RF8010 801E 010-103099 010-203099 No B • YES YES YES • • •
    RF8210 801E 010-103099 010-203099 No B • YES YES YES • • •
    8300 801E 010-103099 010-203099 Icon for Fire Rated Frame Preparations B • YES YES YES • • •
    8500 (no TA-28)   010-103099 010-203099 Icon for Fire Rated Frame Preparations B • YES YES YES • • •
    Vista V3-1 Option 1 010-103099 010-203099 No B • YES YES YES • • •
    Vista V3-7 Option 7E 010-101099 010-201099 No A • YES YES YES • • •
    Vista V3-7E Option 7E     No A • YES YES YES • • •

    RCI L6514 (no TA-28)   010-109099 010-209099 No B • YES YES YES • • •
    S6514 (no TA-28)   010-111099 010-211099 No B • YES YES YES • • •
    F4114 LEK01 010-115099 010-215099 Icon for Fire Rated Frame Preparations B • YES YES YES • • •

    ROFU 1402 (no TA-28)   010-104099 010-204099 No B • YES YES YES • • •
    1507 (no TA-28)   010-102099 010-202099 No B • YES YES YES • • •
    1702 (no TA-28) 010-104099 010-204099 No B • YES YES YES • • •
    1802 (no TA-28) 010-104099 010-204099 No B • YES YES YES • • •
    2402 (no TA-28) 010-105099 010-205099 No B • YES YES YES • • •
    3402 (no TA-28) 010-104099 010-204099 No B • YES YES YES • • •

    SDC 25 Series (no TA-28) 010-107099 010-207099 No B • YES YES YES • • •
    45 Series (no TA-28) 010-114099 010-214099 No B • YES YES YES • • •

    SECUR- ITRON UnLatch UNL-12 (no TA-28) 010-103099 010-203099 No B • YES YES YES • • •
    UnLatch UNL-24 (no TA-28) 010-103099 010-203099 No B • YES YES YES • • •

    TRINE 2012 (no TA-28) 010-112099 010-212099 No B • YES YES YES • • •
    3234 010-102099 010-202099 Icon for Fire Rated Frame Preparations A • YES YES YES • • •
    3478 010-102099 010-202099 Icon for Fire Rated Frame Preparations B • YES YES YES • • •

    VON DUPRIN 5100 (no TA-28) 010-110099 010-210099 No B • YES YES YES • • •
    Strikes not available

    Some electric strikes are not available. If the strike you would like to use is not available, please contact Timely Technical Services for explanation or alternate choices. Reasons strikes may not be available are:

    1. Faceplate is larger than 4 7/8″
    2. Faceplate has radius corners
    3. Housing dimension exceeds the frame face on Timely frame
    Fire Rated Strike Availability

    Only the strikes listed above are approved for use on Timely frames. Other strikes are available as fire rated strikes but are designed to be used with frames that have a 2″ space behind the frame. These strikes are not recommended for Timely frames because the wall must be cut away to make room for the strike. If any strikes are used that require the wall to be cut away, the cut out space must be caulked with intumescent caulk around the perimeter of the strike mechanism.
    Download File in Adobe Acrobat Format PDF DOWNLOAD StrikePreparations-JambElectric.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.



    Strike Preparations – Headers

    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
    Type Uses Timely Strike Plate Available Timely Filler Plate Spacing ID Series Arrow for Frame Preparations pages Templates
            S C A CK AK DE P 1 3/8″ 1 3/4″

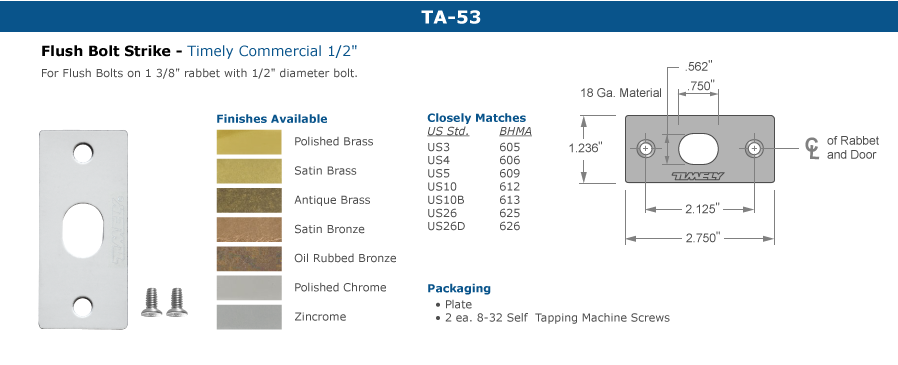

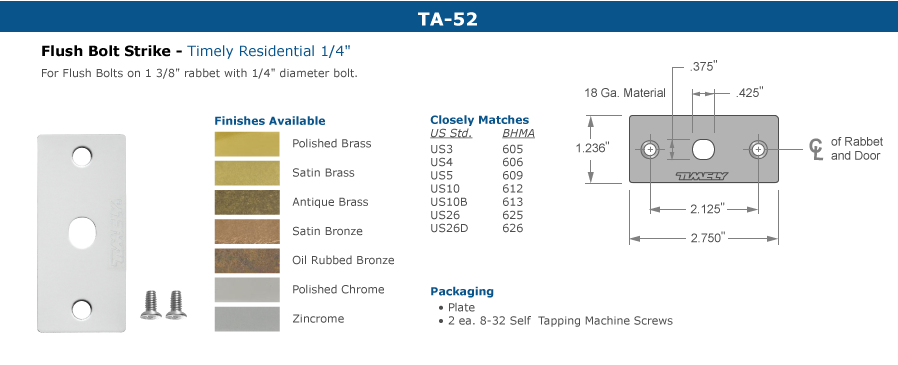

    1 3/8″ DOOR Flush Bolt Commercial 5/16″ TA-52 A Series Arrow for Frame Preparations pages YES YES • • • • • S-70 S-51

    Flush Bolt Commercial 1/2″ TA-53 A YES YES • • • • • • S-70
    Flush Bolt Self Latching TA-1 A YES YES • • • • • S-71 •
    Roller Latch TA-70 A YES YES • • • • • S-71 •

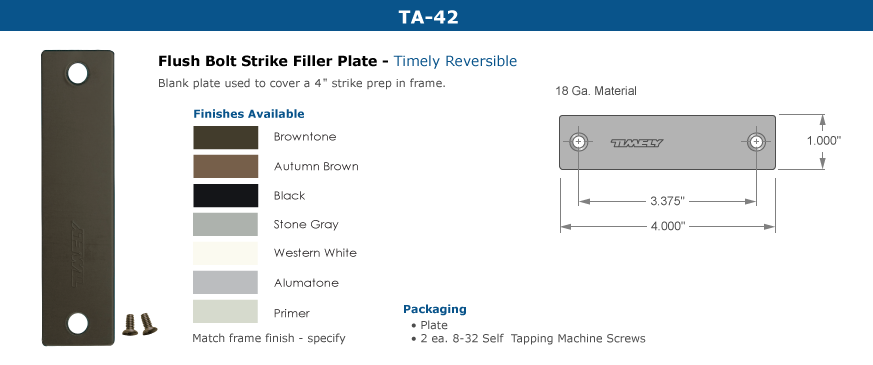

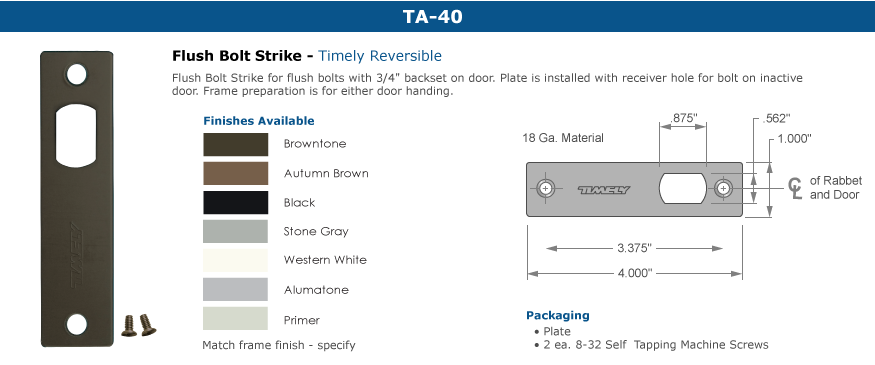

    1 3/4″ DOOR Flush Bolt Reversible TA-40 TA-42 B YES YES YES YES YES • • • S-72
    Flush Bolt Self Latching TA-1 TA-2 A YES YES YES YES YES • • • S-73
    Roller Latch TA-71 TA-2 A YES YES YES YES YES • • • S-73

    Strike Preparations – Custom

    classic s classic adjustable kerferd adjustable kerfed double egress pocket trim kit
    Type Series Arrow for Frame Preparations pages Templates
    S C A CK AK DE P 1 3/8″ 1 3/4″
    Double Lip Strike* Series Arrow for Frame Preparations pages • YES • • • • • • per Mfg. Template

    Non ASA Mortise Lock Strike • YES YES YES YES • • • per Mfg. Template
    Custom Pocket Latch Strike • • • • • • YES • per Mfg. Template
    Custom Flush Bolt Strike • YES • YES • • • • per Mfg. Template
    Concealed Vertical Rod Exit Device Strike • YES • YES • • • • per Mfg. Template
    Rim Exit Device Electric Strike • YES YES YES YES • • • per Mfg. Template

    * Only Available on No-Stop profile

    Strike Preparations – Calculating Minimum Spacing

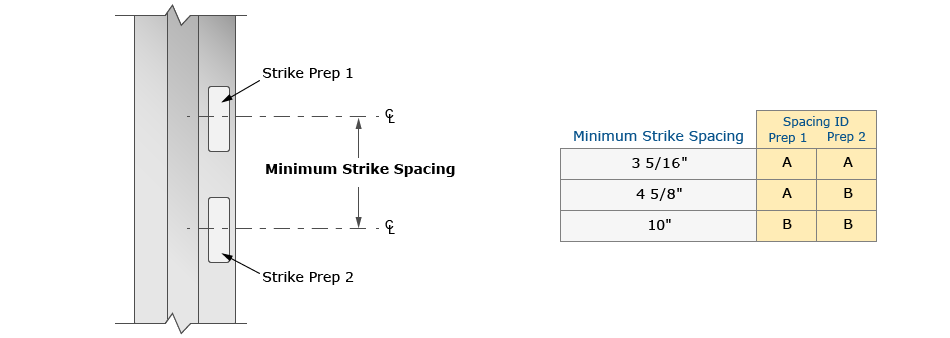

    Minimum Strike Spacing is defined as the center to center distance between two Strike Preps. Each Strike Prep has a Spacing ID assigned to it. The Spacing ID is used to caculate Minimum Strike Spacing.

    Calculating Minimum Spacing Drawing
