POCKET DOOR TRIM KIT (P-Series) SINGLE WITH SIDELIGHT

Timely Door Frames Pocket Door Trim Kit Single Drawing


    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Related Information

    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Rough Openings

    ROUGH OPENING DIMENSIONS Rough Opening Classic Single/Dutch - Rough Opening
    Framing for pocket doors is controlled by the framing instructions included in the pocket door hardware. The framing height for the sidelight area is the same height as the bottom of the track assembly. Since framing for this area requires a stub wall below the header, a shear panel of some sort is recommended to stiffen the joint where the closure side of the track meets the rough framing at the head.

    WIDTH
    ROUGH OPENING WIDTH W1:
    Defined by Pocket Door Hardware
    ROUGH OPENING WIDTH W2:
    Total of the the Sidelight Width(s) plus the total Net Glass Width(s) plus 2" for each Mullion plus 1 1/4"

    HEIGHT
    ROUGH OPENING HEIGHT H1:Same as dimension from floor to bottom of track assembly


    Download Pocket Door Trim Kit – Single with Sidelight | Rough Opening

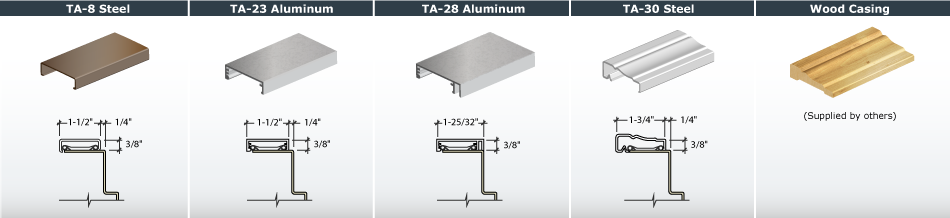

    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Note: Wood casing can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.

    Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Color Options

    Galvanizing is available for all painted finishes and is REQUIRED in areas subject to high humidity, corrosive atmosphere or exterior installations.

    STOCK COLORS   PRE-MATCHED CUSTOM COLORS
    Standard Price Custom color matching is also available. Submit color chip for matching. Consult factory for pricing.

    Timely carries a large raw materials inventory of Stock finishes. navaho White chip winter White chip
            NAVAJO WHITE
    (CC104)    		   WINTER WHITE
    (CC105)

    browntone chip white White chip

    		  white Smoke chip   bone China chip   designer White chip
    BROWNTONE
    (SC101)*†    		 WHITE WHITE
    (CC301)    		   WHITE SMOKE
    (CC302)    		   BONE CHINA
    (CC303)    		   DESIGNER WHITE
    (CC304)

    western White chip charcol chip   Cape Cod Grey chip   neutral Grey chip   Nickel chip
    WESTERN WHITE
    (SC107)*†    		 CHARCOAL
    (CC401)    		   CAPE COD GRAY
    (CC402)    		   NEUTRAL GRAY
    (CC403)    		   NICKEL
    (CC404)

    primer EG chip drift Wood chip   sandy Beach chip   cameo Beige-chip   cozy Peach chip
    PRIMER EG (SC109)*† DRIFTWOOD
    (CC501)     		  SANDY BEACH
    (CC502)     		  CAMEO BEIGE
    (CC503)     		  COZY PEACH
    (CC504)
    Add 52¢ per ft.

    autumn Brown chip brown Sugar chip   cocoa chip   doe Skin chip   harvest Mood chip
    AUTUMN BROWN
    (SC102)*    		 BROWN SUGAR
    (CC601)    		   COCOA
    (CC602)    		   DOESKIN
    (CC603)     		  HARVEST MOON
    (CC604)

    black chip cordovian chip   ruby Red chip   rose Dust chip   mauve Mist chip
    BLACK
    (SC103)*†    		 CORDOVAN
    (CC701)    		   RUBY RED
    (CC702)    		   ROSEDUST
    (CC703)     		  MAUVE MIST
    (CC704)

    Stone Grey chip pacific Blue chip   Twilight chip   country Blue chip   jade chip
    STONE GRAY
    (SC106)*    		 PACIFIC BLUE
    (CC801)     		  TWILIGHT
    (CC802)    		   COUNTRY BLUE
    (CC803)    		   JADE
    (CC901)

    alumatone Chip
    		kentucky Grass chip   miami Waters chip   malibu Green chip   black nickle Chip.png
    ALUMATONE
    (SC108)*    ⊗    		 KENTUCKY GRASS (CC902)   MIAMI WATERS
    (CC903)    		   MALIBU GREEN
    (CC904)    		   BLACK NICKEL
    (CC 905)    ◊


    *Available for Adjustable Frames in powder coat

    †Available prefinished for Fixed Throat Kerf frames

    ⊗Close match to clear anodized aluminum

    ◊Metal Plating with Clear Coat Gloss

    ELITE SERIES   black nickle Chip.png   black nickle Chip.png   black nickle Chip.png

    Colors shown may vary slightly.   BRIGHT SOLID BRASS (ES201) STAINLESS STEEL 430 BRIGHT (ES204) 304 #4 BRUSHED STAINLESS STEEL (ES206)
        BRIGHT PLATED BRASS (ES202)


    POCKET DOOR KIT (P-Series) | Frame ProfilesIcon P Series Large

    Click to enlarge drawings

    P-SERIES 18 GAUGE CRS
    1 3/8" Door Available in both door sizes 1 3/4" Door
    Pocket Door Trim Kit - Frame Profile (P) Pocket Door Trim Kit - Frame Profile (Q)
    Pocket Door Trim Kit - Frame Profile (R) Pocket Door Trim Kit - Frame Profile (E No Stop) Pocket Door Trim Kit - Frame Profile (S)
    greybackgnd Classic C-Series Frame Profile (F) greybackgnd
    greybackgnd Classic C-Series Frame Profile (F) greybackgnd
    greybackgnd Classic C-Series Frame Profile (FE) greybackgnd
    greybackgnd Classic Single with Glazing - Glass Stop or Door Panel can be applied to one or both sides of any Mullion or Jamb greybackgnd
    Note: Profiles are shown with TA-8 Casing for example only.

    * The door is always centered in the wall framing, not the center of the wall. This dimension is only equal if the thickness of drywall is equal on both sides of wall. For example if 5/8" drywall is used on both sides of the wall. The dimension is NOT equal if 5/8" is used on the first side of the wall and 5/8" + 1/2" is used on the second side.

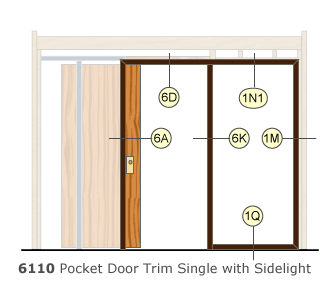

    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Elevations

    Click to enlarge drawings

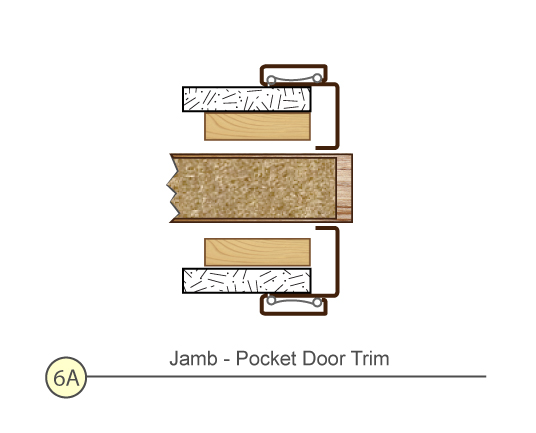

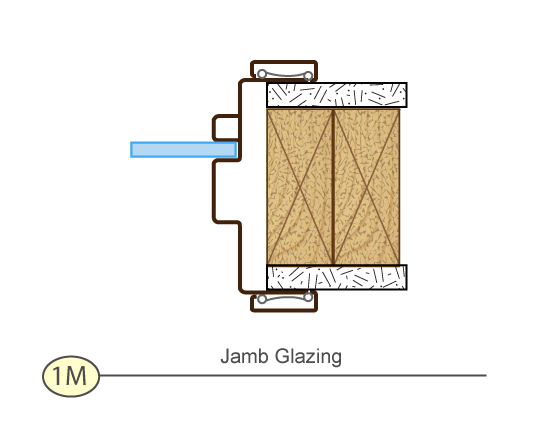

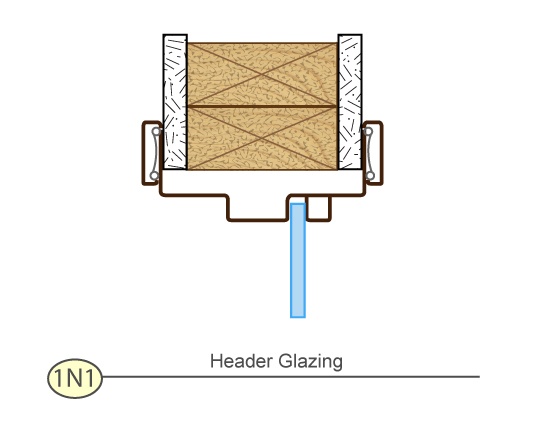

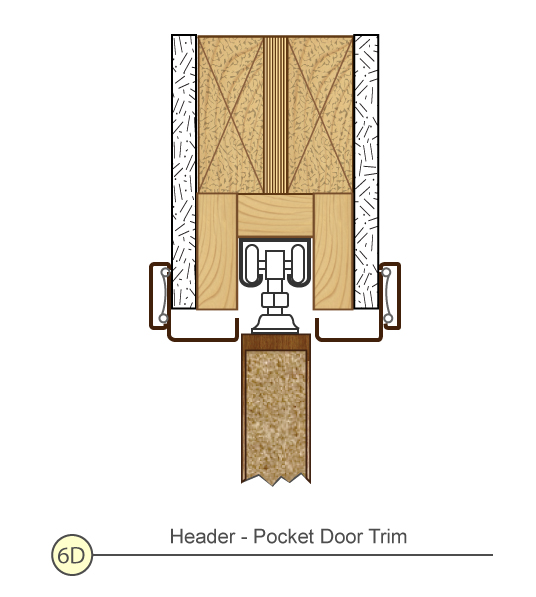

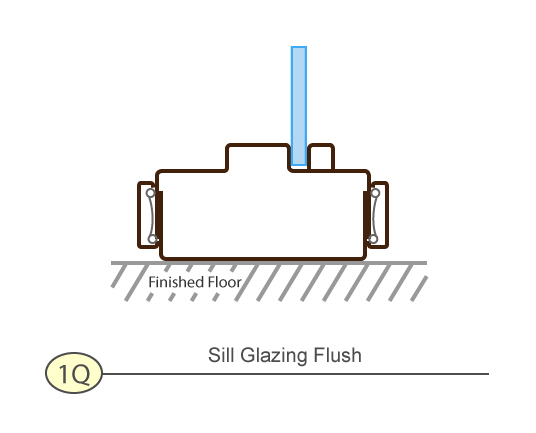

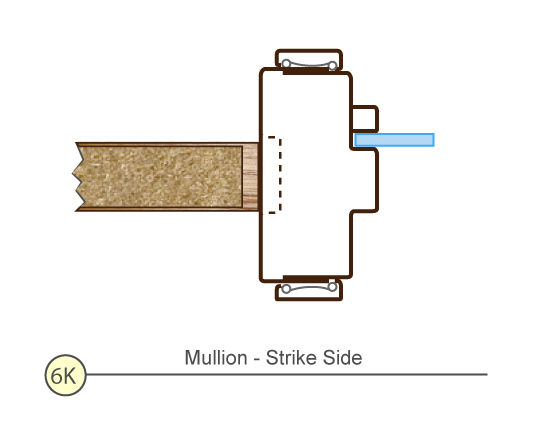

    POCKET DOOR TRIM KIT (P-Series) – Single With Sidelight | Details

    Click to enlarge drawings


    POCKET DOOR TRIM KIT (P -Series) – Single

    PDF Image Thumb Pocket Door Trim Kit - Single Download File in Adobe Acrobat Format PDF DOWNLOAD Pocket Door Trim Kit – SingleWithSidelight.pdf
    To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
