CLASSIC FRAME (S-SERIES & C-SERIES)

SINGLE COMMUNICATING

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Related Information

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Fire Rating

FIRE RATING
JAMB DEPTH RANGE	20 Minute* (C-Series only)	45, 90 Minute (S & C-Series)	GENERAL INFORMATION
Min. Jamb Depth: 4" Max. Jamb Depth: 13"	Max. Door Width: 4' -0" Max. Door Height: 10' – 0"	Max. Door Width: 4' – 0" Max. Door Height: 9' – 0"	All openings approved for Positive and Neutral pressure unless otherwise noted. All ratings apply to steel stud, wood stud, or masonry construction. All ratings approved for category “A” and “B” doors with category “G” edge sealing. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating. Wood or Aluminum casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions. Single frames must be prepared for strike. Embossed WHI 90 minute label is available for Primer Galvanized Frames only. Metal 90 minute label riveted to frame is available.
View minimum screw length here All dimensions shown are inside dimensions – net door opening size. Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

FIRE RATING

JAMB DEPTH RANGE

20 Minute* (C-Series only)

45, 90 Minute (S & C-Series)

GENERAL INFORMATION

Min. Jamb Depth:

Max. Jamb Depth:

13"

Max. Door Width:

4' -0"

Max. Door Height:

10' – 0"

Max. Door Width:

4' – 0"

Max. Door Height:

9' – 0"

All openings approved for Positive and Neutral pressure unless otherwise noted.
All ratings apply to steel stud, wood stud, or masonry construction.
All ratings approved for category “A” and “B” doors with category “G” edge sealing.
Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating.
Wood or Aluminum casing does not affect ratings on door frames. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.
Single frames must be prepared for strike.
Embossed WHI 90 minute label is available for Primer Galvanized Frames only.
Metal 90 minute label riveted to frame is available.

View minimum screw length here

All dimensions shown are inside dimensions – net door opening size.

Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Rough Openings


ROUGH OPENING DIMENSIONS – THREE SIDED DOOR FRAMES
WIDTH Rough opening width is 1 1/4" over nominal door width. This provides for 5/8" clearance between the jamb and the wall. This clearance is necessary for the pocket on the strike and the projection of the hinge screws. Frames can be installed with smaller opening widths but, in some cases, the framing must be relieved to provide the necessary clearance for plumbing the frame and installing the hardware. Opening width maximum is 1 7/8" which allows 5/16" of the frame face against the wall. For wider rough openings, the frame must be positioned with equal clearance on both sides. (Use oval alignment slots to adjust clearance when installing)
ROUGH OPENING WIDTH:	Standard Frames (S-Series and C-Series) – Nominal door width + 1 1/4"
HEIGHT Rough Opening height must provide clearance to level the header and interlock the jambs. Uneven floors will affect this measurement. Maximum space for adequate anchorage is 1 3/16" over net height resulting in approximately 5/16" of the frame face against the wall. While this is not recommended, the frame can still be installed.
Timely standard height – 3/16" over nominal.
ROUGH OPENING HEIGHT: Nominal Height + 1" (Net height +13/16")
Net Height – Frames manufactured to net heights
ROUGH OPENING HEIGHT: Net height + 13/16"
Download Classic – Single Communicating \| Rough Opening image

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Casing Options

Casing Profiles for Timely Steel Door Frames

Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.	Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Color Options

STANDARD
FINISHES

PRE-MATCHED CUSTOM FINISHES

NAVAJO WHITE
(CC104)

WINTER WHITE
(CC105)

WHITE WHITE
(CC301)

BROWNTONE
(SC101)

WHITE SMOKE
(CC302)

BONE CHINA
(CC303)

DESIGNER WHITE
(CC304)

SNOW WHITE
(CC311)

AUTUMN BROWN
(SC102)

CHARCOAL
(CC401)

CAPE COD GRAY
(CC402)

NEUTRAL GRAY
(CC403)

NICKEL
(CC404)

BLACK
(SC103)

DRIFTWOOD
(CC501)

SANDY BEACH
(CC502)

CAMEO BEIGE
(CC503)

THUNDER
(CC511)

STONE GRAY
(SC106)

BLACK BEAN
(CC611)

URBANE BRONZE
(CC612)

BROWN SUGAR
(CC601)

COCOA
(CC602)

WESTERN WHITE
(SC107)

DOESKIN
(CC603)

HARVEST MOON
(CC604)

CORDOVAN
(CC701)

RUBY RED
(CC702)

ALUMATONE
(SC108)

PACIFIC BLUE
(CC801)

TWILIGHT
(CC802)

JADE
(CC901)

KENTUCKY GRASS
(CC902)

PRIMER
(SC109)

OCEAN SPRAY
(CC901)

MALIBU GREEN
(CC904)

BLACK NICKEL
(CC905)

NOTES: Consult factory for pricing and lead times.

ELITE SERIES

430 BRIGHT STAINLESS
STEEL (ES204)

304 #4 BRUSHED STAINLESS
STEEL (ES206)

CUSTOM COLORS

Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.

NOTES:

Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors
may vary slightly.

For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.

CLASSIC FRAME (S-Series) | Frame Profiles

Click to enlarge drawings

S-Series 20 GAUGE
1 3/8" Door	Available in both door sizes	1 3/4" Door
	Minimum order quantity of 100 frames for Profiles A and G.

CLASSIC FRAME (C-Series) | Frame Profiles

Click to enlarge drawings

C-Series 18 GAUGE
1 3/8" Door	Available in both door sizes	1 3/4" Door







3 ¾” FACE HEADER — Use with sub frame for CMU Application 3 ¾” FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation 3 ¾” FACE INSERT — Use for sub frame at head with standard frame in CMU

GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.


NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F. 2. 4″ Sidelights are only avaliable in Profiles E or G. 3. Profiles are shown with TA-8 Casing for example only.

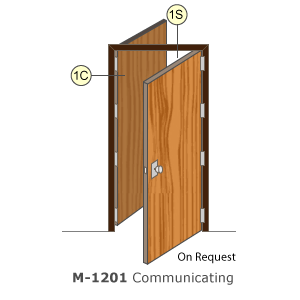

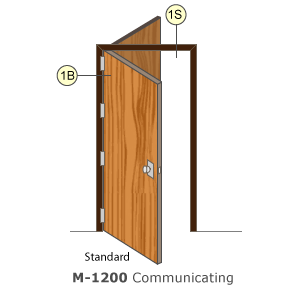

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Elevations

Click to enlarge drawings

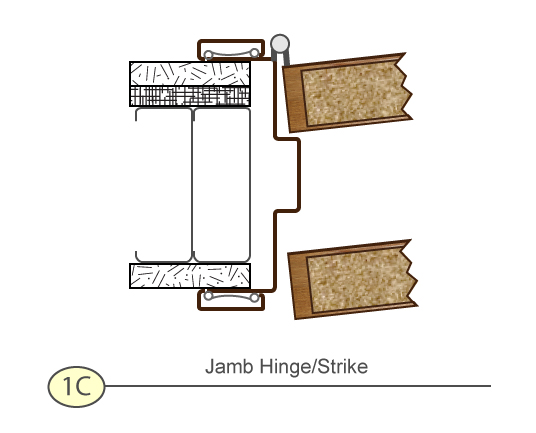

CLASSIC FRAME (S-Series & C-Series) – Single Communicating | Details

Click to enlarge drawings

CLASSIC FRAME (S-Series & C-Series) – Single Communicating


		DOWNLOAD Classic Single Communicating.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
