ADJUSTABLE FRAME (A-SERIES) BORROWED LIGHT
Adjustable Frame, Borrowed Light Drawing


    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Related Information

    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Fire Rating

    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Rough Openings


    ROUGH OPENING DIMENSIONS   Rough Opening Classic Single Access - Rough Opening
    WIDTH

    For Borrowed lights, the rough opening width is 1 1/4″ larger than the inside glass area, including any mullions. For stepped borrowed lights, the dimension is calculated separately for each step width.


    ROUGH OPENING: Glass width + 2″ for each mullion + 1 1/4″

    HEIGHT

    For Borrowed lights, the rough opening height is 1 1/4″ larger than the inside glass area, including any mullions. For stepped borrowed lights, the dimension is calculated separately for each step width.


    ROUGH OPENING:Glass height + 2″ for each mullion + 1 1/4″
    Download Adjustable – Borrowed Light | Rough Opening image


    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Casing Options

    Casing Profiles for Timely Steel Door Frames

    Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
    Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame. Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Color Options



    PRE-MATCHED RAL FINISHES (Powder Coated)

    Timely uses the Sherwin-Williams RAL polyester powder coatings on our (A-Series) Adjustable Frames, which results in consistent and long-lasting finishes. The Timely Adjustable (A-Series) frames can optionally be finished using any of the available Sherwin-Williams RAL powder coatings. Consult factory for pricing and lead times.

    The Sherwin-Williams RAL powder coatings are currently available in 188 vibrant colors. The current selection of colors can be found on the Sherwin-Williams website. Note: The color chart will open in a new window or tab.

    STANDARD FINISHES

    Browntone Chip   Western white Chip
    BROWNTONE (SC101)   WESTERN WHITE (SC107)

    Autumn Brown Chip   alumatone Chip
    AUTUMN BROWN (SC102)   ALUMATONE (SC108)

    black chip   Primer Chip
    BLACK (SC103)   PRIMER (SC109)

    Stone Gray Chip
    STONE GRAY (SC106)



    CUSTOM COLORS

    Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.


    NOTES:
    Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors may vary slightly.

    For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.



    ADJUSTABLE FRAME (A-Series) | Frame ProfilesIcon A Series Large

    Click to enlarge drawings

    A-SERIES 18 GAUGE
    1 3/4″ Door
    Adjustable - Frame Profile (54A) Adjustable - Frame Profile (73A)
    Adjustable - Frame Profile (83A) Adjustable - Frame Profile (91A)
    NOTES: 1. Mullions and Sidelights are not avaliable for A-Series frames. 2. Profiles are shown with TA-8 Casing for example only.

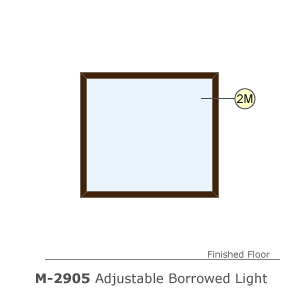

    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Elevations

    Click to enlarge drawings

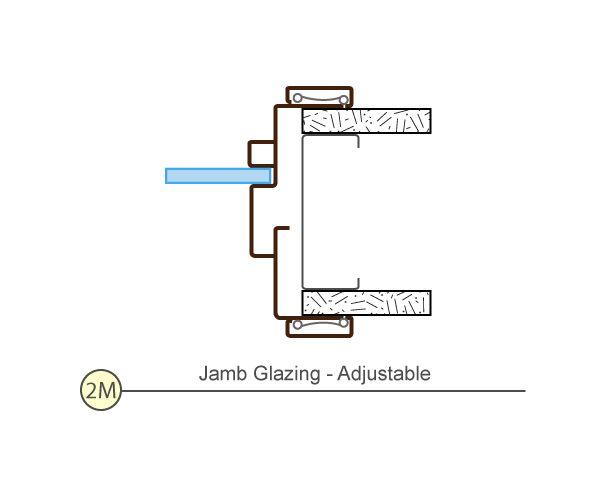

    ADJUSTABLE FRAME (A-Series) – Borrowed Light | Details

    Click to enlarge drawings



    ADJUSTABLE FRAME (A-Series) – Borrowed Light


    PDF Image Thumb Adjustable Borrowed Light Download File in Adobe Acrobat Format PDF DOWNLOAD Adjustable – Borrowed Light.pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.
