PREFIT SPECIFICATIONS

Frame Hinge and Strike Locations 1 3/8″ with 2 Each 3 1/2″ Hinges

235

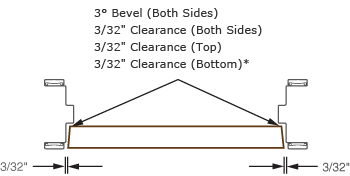

NOTE: When using this chart for premachining door measurements, reduce the A & C dimensions 3/32″ each for door clearance.

click here Prefit Specifications (235) – print layout

*Additional clearance is required for Thresholds and various

floor conditions.

FOR SPECIFICATIONS NOT SHOWN, PLEASE CONSULT OFFICE.

PLEASE SPECIFY IF USING COMMERCIAL OR RESIDENTIAL WEIGHT HINGES.

NET FRAME DIMENSIONS
+HEIGHT A B C
3-0 10-3/32 16 18-3/32*
3-2 10-3/32 18 19-3/32*
3-6 10-3/32 22 21-3/32*
4-0 10-3/32 28 24-3/32*
4-2 10-3/32 30 25-3/32*
4-4 10-3/32 32 26-3/32*
4-6 10-3/32 34 27-3/32*
4-8 10-3/32 36 28-3/32*
4-10 10-3/32 38 29-3/32*
5-0 10-3/32 40 20-3/32
5-2 10-3/32 42 22-3/32
5-6 10-3/32 46 26-3/32
6-0 10-3/32 52 32-3/32
6-2 10-3/32 54 34-3/32
6-4 10-3/32 56 36-3/32
6-8 10-3/32 60 40-3/32*
6-9 10-3/32 61 41-3/32
6-9 10-3/32 61 40-19/32*
7-0 10-3/32 64 44-3/32
7-0 10-3/32 64 42-3/32*
7-2 10-3/32 66 46-3/32
7-4 10-3/32 68 48-3/32
+ Frame Heights are 3/16″ longer than callout door height unless ordered net (3/32″ top, 3/32″ bottom for clearance).

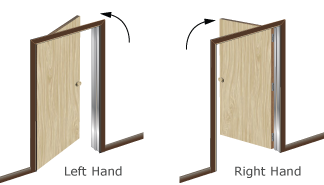

Handing Information: To establish handing always Push the door away from you.

*Reversible – Frame can be used as Left or Right Hand,   swing in our out.
