CLASSIC FRAME (S-SERIES & C-SERIES)

SINGLE WITH SIDELIGHT(s)

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Related Information

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Fire Rating

FIRE RATING 45 MINUTE
ASSEMBLY	DOOR AREA	GLASS AREA*		GENERAL INFORMATION
Max. Width: 10' – 1" Max. Height: 10' – 1"	Max. Width: 4' 0" Max. Height: 9' – 0"	Width: up to 2' Max. Height: 8' – 11"	Width: over 2' up to 3' Max. Height: 4' – 6"	All openings are approved for Positive and Neutral pressure unless otherwise noted. All ratings apply to steel stud, woodstud, or masonry construction. all ratings approved for category “A” and “B” doors with category “G” edge sealing. Timely’s fire rated Metal “U” Insert is recommended for masonry installations. If wood sub-frame is used in place of Metal “U” Insert, it will be necessary to use fire rated drywall on both sides of wood to maintain fire rating. Aluminum casing does not affect fire rating. Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions. Single frames must be prepared for strike plate or reinforced with (TA-12) for a rim exit.
Max. Width: 10' – 1" Max. Height: 10' – 1"	Max. Width: 4' 0" Max. Height: 9' – 0"	Visible light is 1" less in width and height
View minimum screw length here All dimensions shown are inside dimensions – net door opening size. * Multiple Glass Areas can be created with Mullions. The only limitations are Maximum Assembly Width and Height. ** For glass widths exceding 24" the maximum glass area is 1296 sq. in. unless approved by local AHJ. Distributors of Timely Frames may be approved to purchase labels and apply them to frames at their own facility. Intertek has set guidelines and a fee schedule for this program. Requirements and prices are available from Timely or Intertek.

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Rough Openings

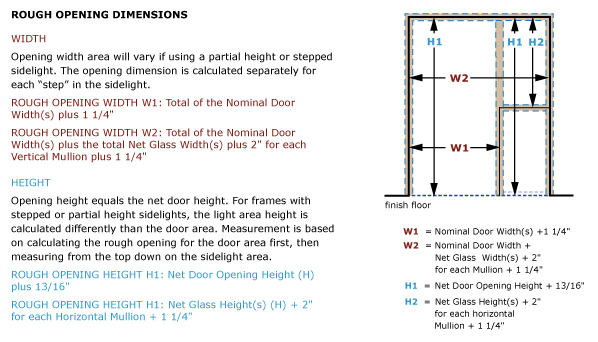

ROUGH OPENING DIMENSIONS
WIDTH Opening width area will vary if using a partial height or stepped sidelight. The opening dimension is calculated separately for each “step” in the sidelight.
ROUGH OPENING WIDTH (W1): Total of the Nominal Door Width(s) plus 1 1/4"
ROUGH OPENING WIDTH (W2): Total of the Nominal Door Width(s) plus the total Net Glass Width(s) plus 2" for each Vertical Mullion plus 1 1/4"
HEIGHT Opening height equals the net door height. For frames with stepped or partial height sidelights, the light area height is calculated differently than the door area. Measurement is based on calculating the rough opening for the door area first, then measuring from the top down on the sidelight area.
ROUGH OPENING HEIGHT (H1): Net Door Opening Height (H) plus 13/16"
ROUGH OPENING HEIGHT (H2): Net Glass Height(s) (H) + 2" for each Horizontal Mullion + 1 1/4"
Download Classic – Single with Sidelight(s)\| Rough Opening image

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Casing Options

Casing Profiles for Timely Steel Door Frames

Please select “Products > Casing Options” from the main menu if you require additional information regarding Timely’s casing options.
Wood casing: can easily be applied to Timely frames. This requires a frame without Casing Retainer Clips. Specify frames with nail holes and oval slots (NHOS) only Wood casing is then installed over the frame face using a nail gun or trim head screws. Casing profile must provide back clearance for screw heads used to install frame.	Fire Ratings: Wood casing must be applied with hot melt glue or contact adhesive on 90 minute rated frames and on all glazed openings with 45 minute or 60 minute rating. On all other fire rated frames, wood casing can be applied with nails or finish head screws on jambs and mullions.

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Color Options

STANDARD
FINISHES

PRE-MATCHED CUSTOM FINISHES

NAVAJO WHITE
(CC104)

WINTER WHITE
(CC105)

WHITE WHITE
(CC301)

BROWNTONE
(SC101)

WHITE SMOKE
(CC302)

BONE CHINA
(CC303)

DESIGNER WHITE
(CC304)

SNOW WHITE
(CC311)

AUTUMN BROWN
(SC102)

CHARCOAL
(CC401)

CAPE COD GRAY
(CC402)

NEUTRAL GRAY
(CC403)

NICKEL
(CC404)

BLACK
(SC103)

DRIFTWOOD
(CC501)

SANDY BEACH
(CC502)

CAMEO BEIGE
(CC503)

THUNDER
(CC511)

STONE GRAY
(SC106)

BLACK BEAN
(CC611)

URBANE BRONZE
(CC612)

BROWN SUGAR
(CC601)

COCOA
(CC602)

WESTERN WHITE
(SC107)

DOESKIN
(CC603)

HARVEST MOON
(CC604)

CORDOVAN
(CC701)

RUBY RED
(CC702)

ALUMATONE
(SC108)

PACIFIC BLUE
(CC801)

TWILIGHT
(CC802)

JADE
(CC901)

KENTUCKY GRASS
(CC902)

PRIMER
(SC109)

OCEAN SPRAY
(CC901)

MALIBU GREEN
(CC904)

BLACK NICKEL
(CC905)

NOTES: Consult factory for pricing and lead times.

ELITE SERIES

430 BRIGHT STAINLESS
STEEL (ES204)

304 #4 BRUSHED STAINLESS
STEEL (ES206)

CUSTOM COLORS

Custom color matching is also available. Submit color chip for matching. Consult factory for pricing and lead times.

NOTES:

Color chips available upon request, all finishes are semi-gloss unless otherwise specified. Touch-up paint available upon request, colors
may vary slightly.

For complete technical information, contact your Timely distributor or our Marketing Service Department. Colors & price subject to change.

CLASSIC FRAME (S-Series) | Frame Profiles

Click to enlarge drawings

S-Series 20 GAUGE
1 3/8" Door	Available in both door sizes	1 3/4" Door
	Minimum order quantity of 100 frames for Profiles A and G.

CLASSIC FRAME (C-Series) | Frame Profiles

Click to enlarge drawings

C-Series 18 GAUGE
1 3/8" Door	Available in both door sizes	1 3/4" Door







3 ¾” FACE HEADER — Use with sub frame for CMU Application 3 ¾” FACE NO STOP HEADER — Use with standard frame for Concealed Overhead Closer Installation 3 ¾” FACE INSERT — Use for sub frame at head with standard frame in CMU

GLASS STOP OR DOOR PANEL CAN BE APPLIED TO ONE OR BOTH SIDES OF ANY MULLION OR JAMB.


NOTES: 1. C-Series Sidelights are only avaliable in Profiles C, E, or F. 2. 4″ Sidelights are only avaliable in Profiles E or G. 3. Profiles are shown with TA-8 Casing for example only.

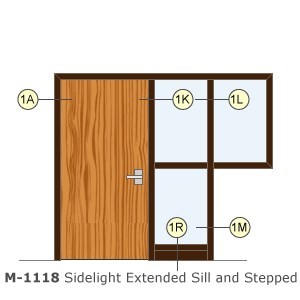

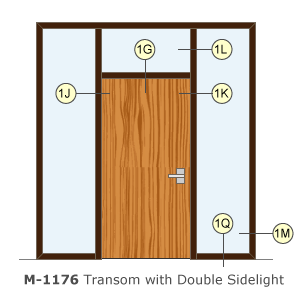

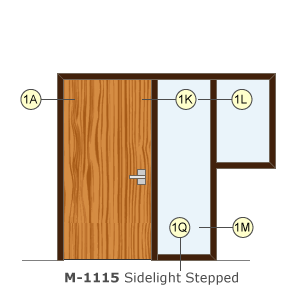

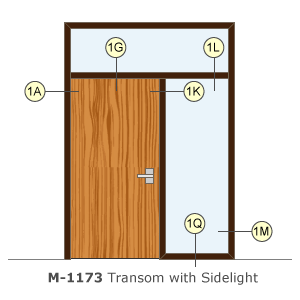

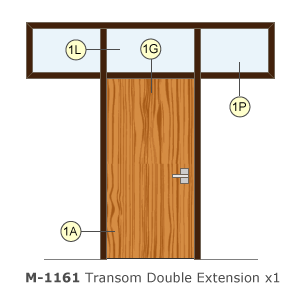

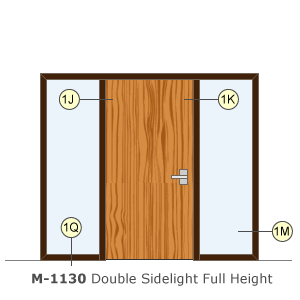

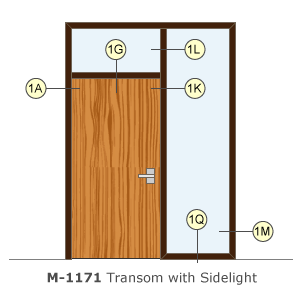

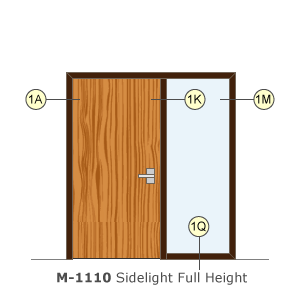

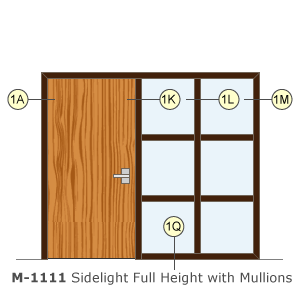

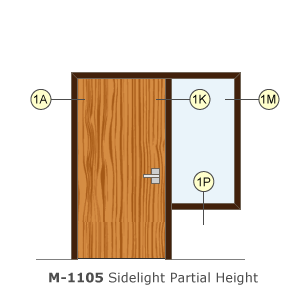

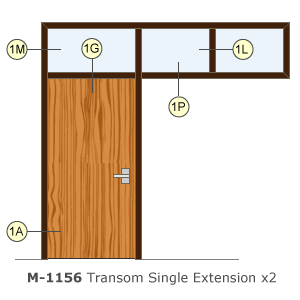

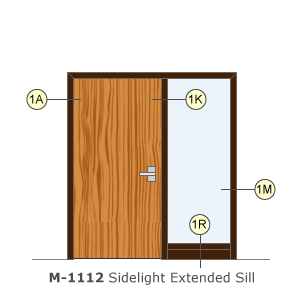

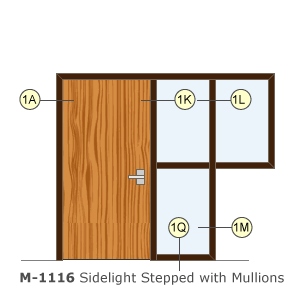

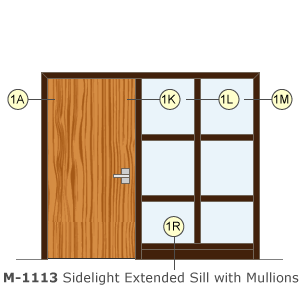

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Elevations

Click to enlarge drawings

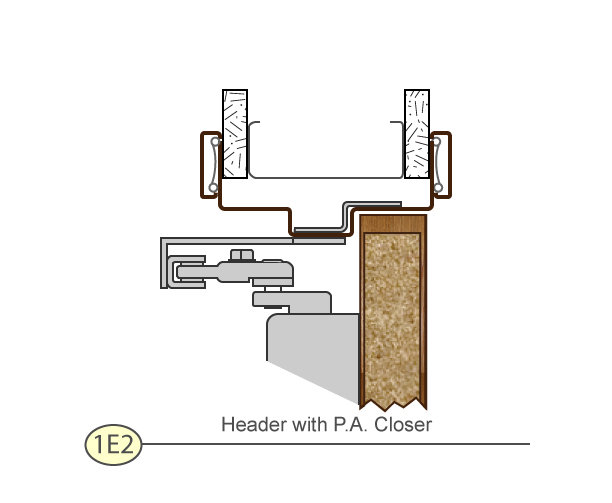

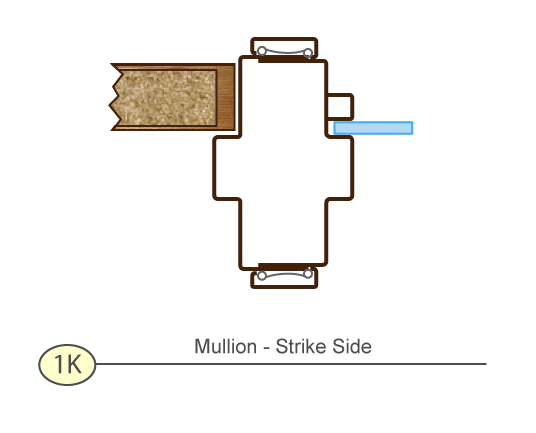

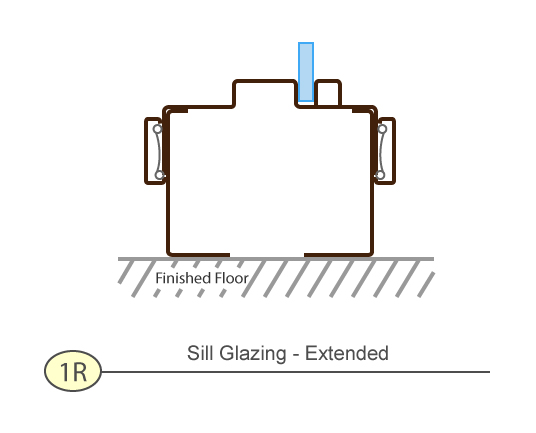

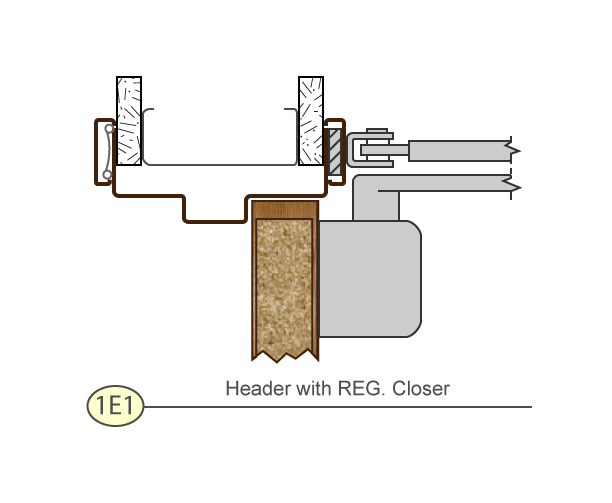

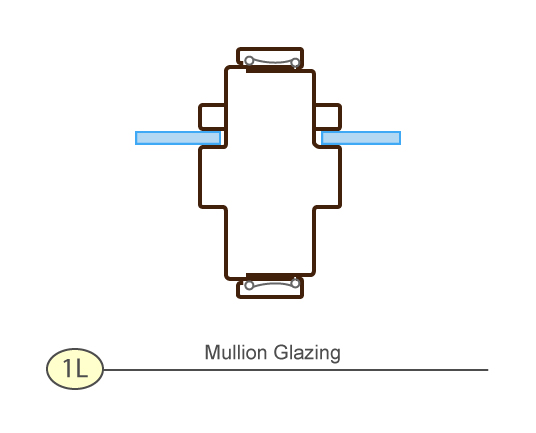

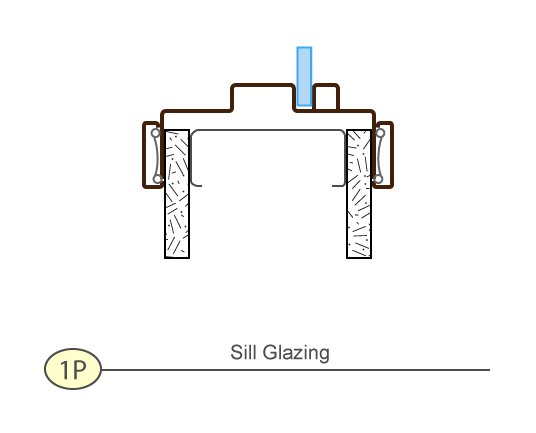

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s) | Details

Click to enlarge drawings

CLASSIC FRAME (S-Series & C-Series) – Single with Sidelight(s)
		DOWNLOAD Classic – Single with Sidelight(s).pdf To save the file, right click on the link, choose to Save Link As and save the file to a location on your computer.

FRAME MATERIALS	DOOR SIZE & WEIGHT	JAMB DEPTH RANGES	RATINGS
Prefinished Steel	Door Thickness: 1 3/8" or 1 3/4" Max. Door Weight: 500 Lbs. Max. Door Width: 4' – 0" Max. Door Height: 12' – 0" **	Standard Jamb Depths: S-Series (20 gauge): 3 3/4", 4 5/8", 4 7/8", 5" and 5 3/8" C-Series (18 gauge): 3 1/2", 3 3/4", 4", 4 5/8", 4 7/8", 5", 5 3/8", 6 5/8", 6 7/8" and 7 1/4" Custom Jamb Depths: C-Series (18 gauge): 3 3/8" to 13" in 1/8" increments. Max. Mullion Length:** 10' – 1"	Not Available
MAX ASSEMBLY SIZE
Max. Assembly Width: 12' – 0" * (for Standard Jamb Depths) 10' – 1" * (for Custom Jamb Depths) Max. Assembly Height: 10' – 1"
* Wider assemblies will have splice joints in frame and casing. ** Mullions are always supplied in 18 gauge. All widths and heights are inside dimensions – net door or glass opening size.
