DOUBLE EGRESS – Plan Profiles

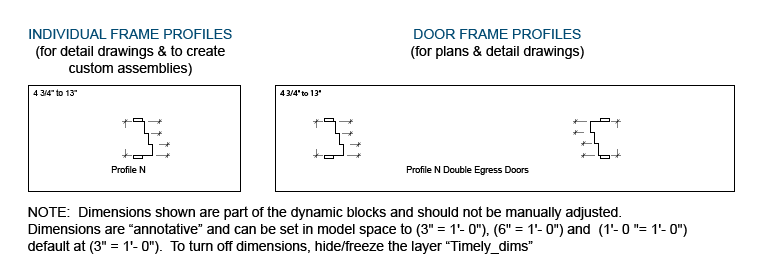

• Plan Profiles are saved as AutoCad 2010 files.
• Plan Profiles are Dynamic Blocks with the ability to:
  1. Select from 6 different casing profiles, 1 example wood casing or no-casing.
  2. Select a valid wall size.

NOTE: Dimensions shown are part of the dynamic blocks and should not be manually adjusted. Dimensions are “annotative” and can be set in model space to (3″ = 1′ – 0″ default), (6″ = 1′ – 0″) and (1′ – 0″ = 1′ – 0″).
